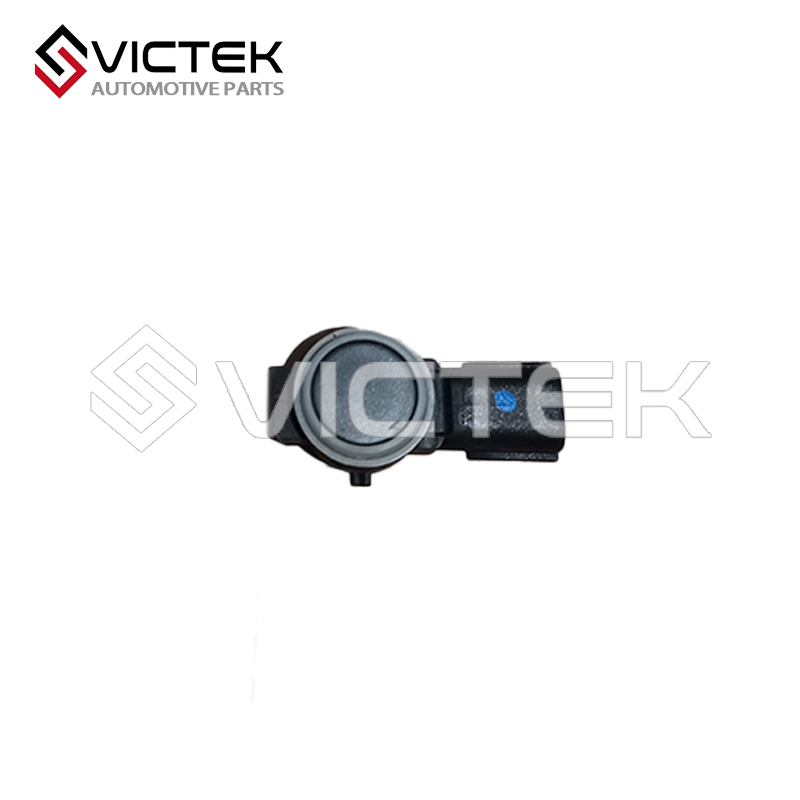

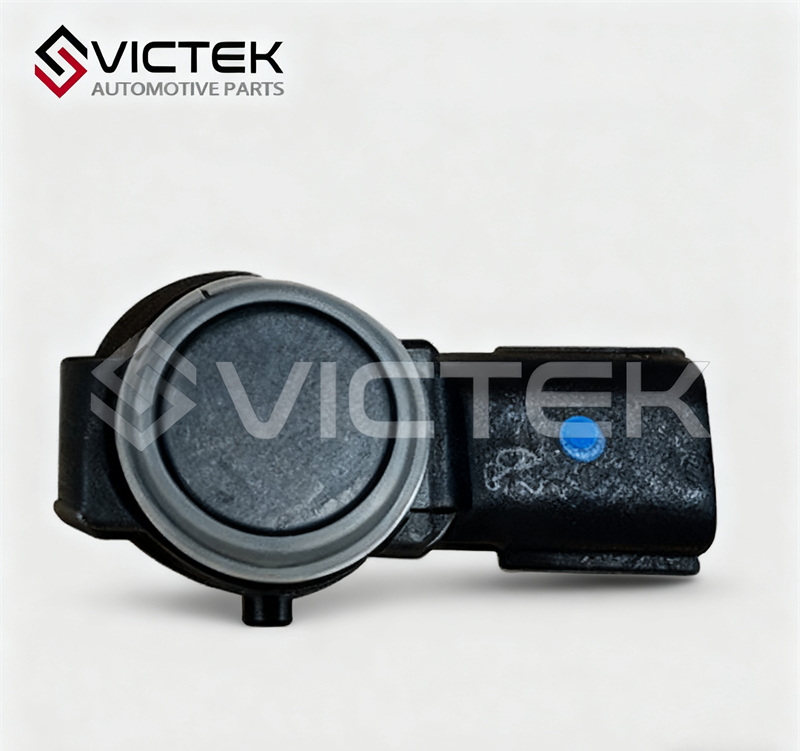

The Ultrasonic Sensor 3776020-FS01 is like a "tiny safety detector" for the Dongfeng Dignity IX5—mostly hidden in the front and rear bumpers, it’s a key part of the car’s parking assist system (commonly called "reverse radar"). It’s tailor-made for 2019–2023 Dignity IX5 models (covering all trims, from basic comfort to flagship) and works perfectly with the IX5’s 1.5T turbo (DK15C) and 2.0L naturally aspirated (DFMB20) engines.
Unlike some fancy tech that’s hard to understand, this sensor’s job is simple but super useful: it sends out ultrasonic waves to "sense" obstacles near the car (like curbs, walls, or other vehicles) and tells you how far they are—usually via beeps from the car’s speaker or a distance display on the central control screen. Without it, parking (especially for new drivers) gets way trickier—you might accidentally tap a curb or a parked car when reversing. Below’s a down-to-earth breakdown of what this little sensor does:
This ultrasonic sensor isn’t just a "beeper"—it has 3 practical jobs that make parking and low-speed driving way safer:
Obstacle Distance Detection: It sends out high-frequency ultrasonic waves (too high for humans to hear) that bounce off nearby objects. The sensor then catches the reflected waves and calculates how far the obstacle is—usually covering a range of 0.2m to 2.5m (perfect for parking, where you need to judge tight gaps). For example, when reversing toward a wall, it’ll start beeping when you’re 1.5m away, and beep faster as you get closer (non-stop beeps when you’re 0.3m away—warning you to stop!).
![3776020-FS01]( "3776020-FS01")
How It Works (Simple Science, No Jargon)
You don’t need to be an engineer to get how this sensor works—here’s the step-by-step:
Start-Up: When you put the IX5 in reverse (or press the "park assist" button for front detection), the sensor turns on automatically.
Send Waves: The piezoelectric ceramic inside sends out ultrasonic waves (about 40kHz—way higher than human hearing) toward the area behind/front of the car.
Catch Reflections: If there’s an obstacle (like a wall or another car), the waves bounce back and hit the sensor.
Calculate Distance: The sensor’s chip times how long it takes for the waves to go out and come back (sound travels at a steady speed!). It uses that time to calculate the distance to the obstacle.
Warn You: If the distance is too close, the sensor sends a signal to the car’s system—your speaker beeps (faster beeps = closer obstacle) and the central control screen shows the distance (red = super close, yellow = getting close, green = safe).
It’s a "plug-and-play" part, but aligning it
right matters for accurate detection:
Find the Right Spot: Use the pre-drilled hole in the bumper (marked with a small icon at the factory). If you’re replacing an old sensor, just take the old one out and put the new one in—same spot.
Plug It In: The sensor has a small connector that fits into the car’s wiring harness (it’s a "one-way" plug—won’t fit backwards). Push it in until you hear a click.
Secure It: Twist the sensor slightly (like a bottle cap) to lock it into the bumper hole. It should sit flush with the bumper—no sticking out or wiggling.
Calibrate (Important!): After installation, use a Dongfeng diagnostic tool (like X431) to "calibrate" the sensor. This tells the car’s system the sensor’s exact position, so it calculates distance correctly (no wrong beeps!).
![3776020-FS01]( "3776020-FS01")
Summary
In short, the Ultrasonic Sensor 3776020-FS01 is a "small but mighty" part for the Dongfeng Dignity IX5. It takes the stress out of parking, keeps you from hitting small obstacles, and lasts for years with minimal care. Stick to the original part, get it installed (and calibrated!) right, and you’ll never have to panic about "did I miss something behind me?" again.
